Classification of material table
Classification
Plate Material
Chain Material
Method
A
18Cr. Stainless steel
Steel
Standard
B
Nickel plated
Option
C
18-8 Stainless steel
18-8 Stainless steel

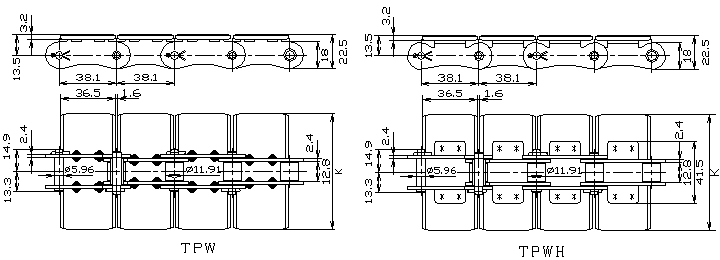

Chain dimensions (Unit:mm)
Pulton No.
Plate Width
K
Max.Allowable Tension
Approx.
Weight
Kg/m
A/B
C
TPW-24
TPWH-24
63.5
2.94
1.03
2.83
TPW-30
TPWH-30
76.2
3.14
TPW-32
TPWH-32
82.6
3.27
TPW-36
TPWH-36
95.3
3.57
TPW-40
TPWH-40
101.6
3.75
TPW-44
TPWH-44
114.3
3.98
TPW-46
TPWH-46
120.7
4.09
TPW-50
TPWH-50
127
4.3
TPW-60
TPWH-60
152.4
4.93
TPW-64
TPWH-64
165.1
5.22
TPW-74
TPWH-74
190.5
5.83
