Chain dimensions (Unit:mm)
Pulton No.
Pitch
Roller Dia.
Inner Link
Width
W
Pin
Plate
Standard
Nickel
Stainless
P
Small
Dr
Large
D
Dia.
d
Length
L
Height
H
Thick.
T
C2040 C2042
NP
SS
25.4
7.92
15.88
7.95
3.98
17.8
(18.4)
12
1.5
C2050 C2052
NP
SS
31.75
10.16
19.05
9.55
5.09
22.5
15
2
C2060H C2062H
NP
SS
38.1
11.91
22.23
12.7
5.96
30.8
(31.3)
17.2
3.2
C2080H C2082H
NP
SS
50.8
15.88
28.58
15.88
7.94
38.6
22.6
4
C2100H C2102H
NP
SS
63.5
19.05
39.67
19.05
9.54
45.9
(46.7)
28.6
4.8
(5)
C2120H C2122H
NP
SS
76.2
22.23
44.45
25.4
11.11
56.3
(57.9)
35
5.6
(6)
C2160H C2162H
NP
SS
101.6
28.58
57.15
31.75
14.29
71.4
(70.6)
48
7.2
(7)
Pulton No.
Standard/NP Type
SS Type
Approx. Weight
Kg/m
Standard
Nickel
Stainless
Average Tensile
Strength
kN
Max.Allowable
Tension
kN
Small
Roller
Large
Roller
C2040 C2042
NP
SS
16.66
0.44
0.51
0.87
C2050 C2052
NP
SS
27.93
0.74
0.87
1.35
C2060H C2062H
NP
SS
40.18
1.03
1.51
2.19
C2080H C2082H
NP
SS
65.66
1.76
2.36
3.42
C2100H C2102H
NP
SS
107.8
2.55
3.54
(3.8)
5.69
(6)
C2120H C2122H
NP
SS
151.9
3.82
5.14
(5.63)
8.12
(8.68)
C2160H C2162H
NP
SS
254.8
6.37
8.83
(9.02)
13.46
(13.76)

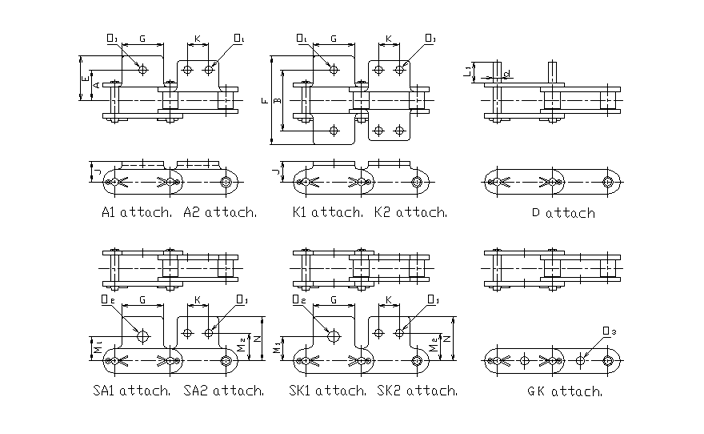

Attachment dimensions (Unit:mm)
Pulton No.
A1 Attachment Dimension
K1 Attachment
Dimension
Standard
Nickel
Stainless
G
J
E
A
K
O
1
F
B
C2040 C2042
NP
SS
19.1
9.1
19.8
12.7
9.5
3.6
39.6
25.4
C2050 C2052
NP
SS
23.8
11.1
24.5
15.9
11.9
5.2
49
31.8
C2060H C2062H
NP
SS
28.6
14.7
33.9
21.45
14.3
5.2
67.8
42.9
C2080H C2082H
NP
SS
38.1
19.1
40.8
27.8
19.1
7.2
81.6
55.6
C2100H C2102H
NP
SS
47.6
23.4
50
(50.4)
33.3
23.8
8.8
100
(100.8)
66.6
C2120H C2122H
NP
SS
57.2
27.8
60.7
(61.4)
39.7
28.6
10.5
121.4
(122.8)
79.3
C2160H C2162H
NP
SS
76.2
36.5
77.8
(77.4)
52.4
38.1
14.3
155.6
(154.8)
104.7
Pulton No.
SA1,SK1 Attachment Dimension
D Attachment
Dimension
GK
Attachment
Dimension
Standard
Nickel
Stainless
N
M
1
M
2
O
2
d
L
1
O
3
C2040 C2042
NP
SS
20.5
11.1
13.5
5.2
3.98
9.5
4.1
C2050 C2052
NP
SS
25
14.3
15.9
6.8
5.09
11.9
5.2
C2060H C2062H
NP
SS
32.9
17.5
19
8.8
5.96
14.3
6.2
C2080H C2082H
NP
SS
40.5
22.2
25.4
10.5
7.94
19
8.1
C2100H C2102H
NP
SS
50.4
28.6
31.8
14.3
9.54
23.8
10.1
C2120H C2122H
NP
SS
61.2
33.3
37.3
16.3
11.11
28.6
12.1
C2160H C2162H
NP
SS
79.3
44.4
50.8
21.8
14.29
38.1
16.1
