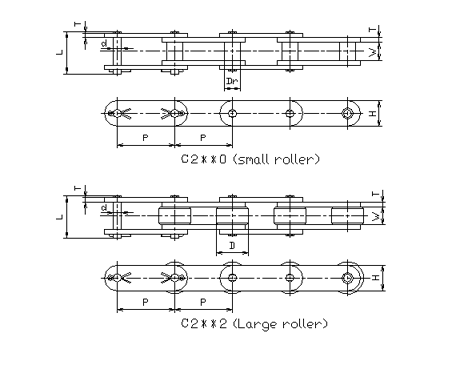

Chain dimensions (Unit:mm)
Pulton No.
Pitch
Roller Dia.
Inner
Link Width
W
Pin
Plate
Standard
Nickel
Stainless

P
Small
Dr
Large
D
Dia
d
Length
L
Height
H
Thick
T
C2040-C2042
NP
SS
25.4
7.92
15.88
7.95
3.98
17.8
(18.4)
12
1.5
C2050-C2052
NP
SS
31.75
10.16
19.05
9.55
5.09
22.5
15
2
C2060H-C2062H
NP
SS
38.1
11.91
22.23
12.7
5.96
30.8
(31.3)
17.2
3.2
C2080H-C2082H
NP
SS
50.8
15.88
28.58
15.88
7.94
38.6
22.6
4
C2100H-C2102H
NP
SS
63.5
19.05
39.67
19.05
9.54
45.9
(46.7)
28.6
4.8
(5)
C2120H-C2122H
NP
SS
76.2
22.23
44.45
25.4
11.11
56.3
(57.9)
35
5.6
(6)
C2160H-C2162H
NP
SS
101.6
28.58
57.15
31.75
14.29
71.4
(70.6)
48
7.2
(7)

Pulton No.
Standard/NP Type
SS Type
Approx. Weight
Kg/m
Standard
Nickel
Stainless
Average Tensile
Strength
kN
Max.Allowable
Tension
kN
Small
Roller

Larg
 Roller
C2040-C2042
NP
SS
16.66
0.44
0.51
0.87
C2050-C2052
NP
SS
27.93
0.74
0.87
1.35
C2060H-C2062H
NP
SS
40.18
1.03
1.51
2.19
C2080H-C2082H
NP
SS
65.66
1.76
2.36
3.42
C2100H-C2102H
NP
SS
107.8
2.55
3.54
(3.8)
5.69
(6)
C2120H-C2122H
NP
SS
151.9
3.82
5.14
(5.63)
8.12
(8.68)
C2160H-C2162H
NP
SS
254.8
6.37
8.83
(9.02)
13.46
(13.76)
