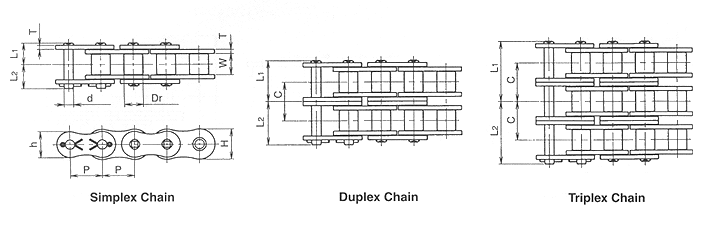

Dimensions - mm
PULTON
Chain No.
Pitch
P
Roller
Dia.
Dr
Width
Between
Inner Plates
W
Pin
Link Plate
Transverse
Pitch
C
Average
Tensile
Strength
kN
Maximum
Allowable
Load
kN
Approx.
Weight
kg/m
Dia.
d
Length
Height
Thick
ness
T
L
1
L
2
H
h
80SH
80SH-2
80SH-3
25.4
15.88
15.88
7.94
17.75
34.05
50.35
20.85
37.15
53.45
24.1
20.8
4
32.6
98.1
196
294
17.7
30
44.1
3.15
6.26
9.37
100SH
100SH-2
100SH-3
31.75
19.05
19.05
9.54
21.3
40.85
60.4
24.6
44.15
63.7
30.1
26
4.8
39.1
145
290
435
25.5
43.3
63.7
4.63
9.2
13.77
120SH
120SH-2
120SH-3
38.1
22.23
25.4
11.11
26.4
50.85
75.3
29.9
54.35
78.8
36.2
31.2
5.6
48.9
196
392
588
33.3
56.7
83.4
6.67
13.27
19.86
140SH
140SH-2
140SH-3
44.45
25.4
25.4
12.71
28.1
54.2
80.3
33
59.1
85.2
42.2
36.4
6.4
52.2
255
510
765
43.1
73.4
108
8.49
16.88
25.28
160SH
160SH-2
160SH-3
50.8
28.58
31.75
14.29
33.1
64.05
95
38.1
69.05
100
48.2
41.6
7.1
61.9
324
647
971
54.9
93.4
137
11.04
21.97
32.9
200SH
200SH-2
200SH-3
63.5
39.68
38.1
19.85
42.25
81.4
120.55
49.35
88.5
127.65
60.3
52
9.5
78.3
579
1157
1736
79.4
135
199
10
37.78
56.55
