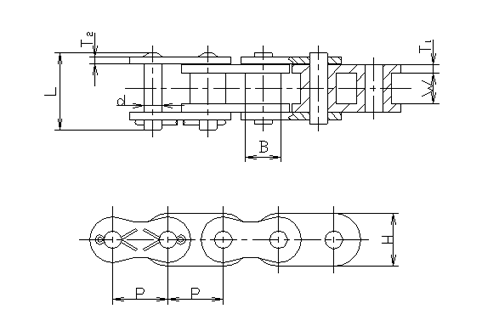

Chain dimensions (Unit:mm)
Pulton
No.
Pitch
P
Bush
Link Width
B
Bush Link
Width
W
Pin
Bush Link
Outer Plate
Thick.
T
2
Max.Allowable
Tension
kN
Approx.
Weight
Kg/m
Dia.
d
Length
L
Height
H
Thick
T
1
15PS
4.7625
2.48
2.38
1.62
8.4
4.4
1.4
0.57
0.07
0.056
25PS
6.35
3.3
3.2
2.31
10.3
6
1.5
0.75
0.09
0.1
35PS
9.525
5.08
4.8
3.59
15.1
9
2.3
1.25
0.18
0.22
40PS
12.7
7.92
7.95
3.98
18.5
12
1.5
1.5
0.41
0.32
50PS
15.875
10.16
9.55
5.09
23.25
15
2.4
2
0.71
0.6
60PS
19.05
11.91
12.7
5.96
29.55
18
3.2
2.4
0.92
0.86
